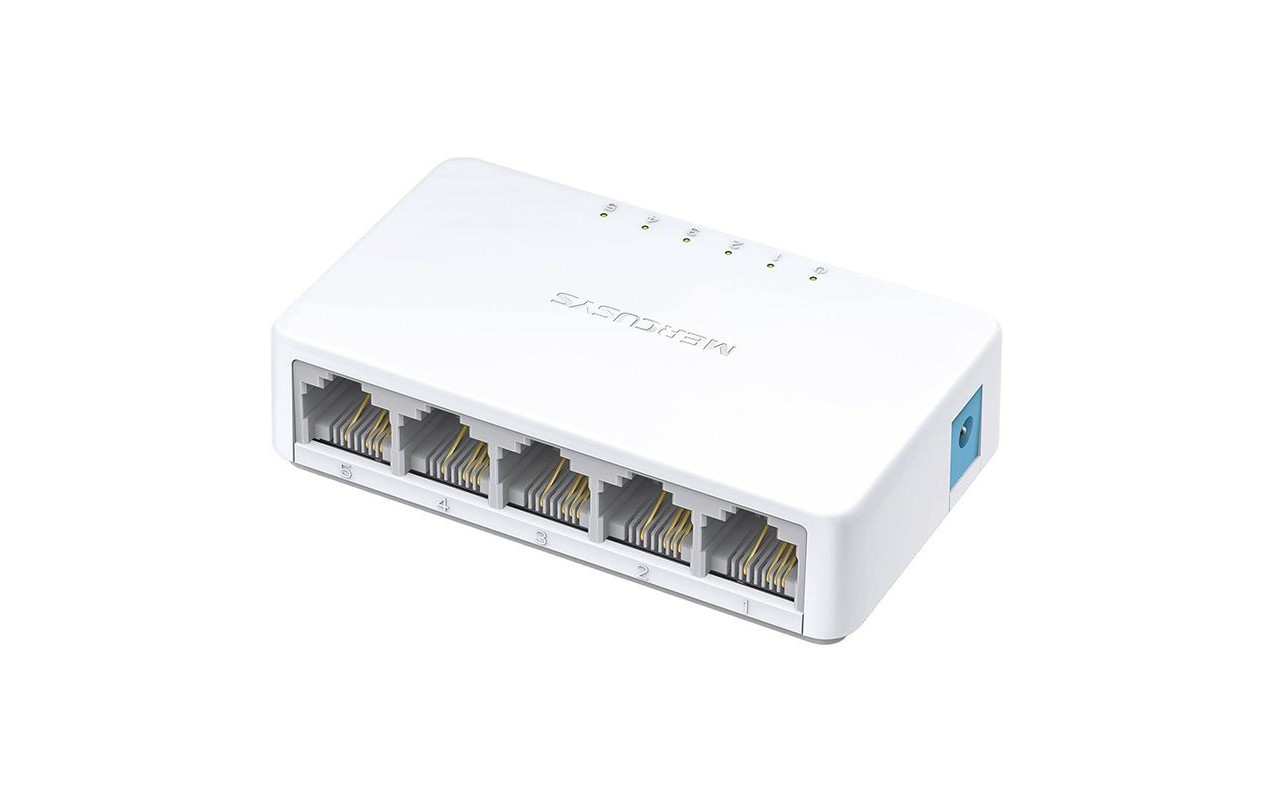

Switch Mercusys MS105
Descriere:
Switch desktop cu 5 porturi Ethernet de 10/100 Mbps, fara ventilator, pentru extinderea retelei prin cablu. Producatorul indica compatibilitate cu calculatoare, imprimante, camere IP, televizoare smart si console de jocuri. Producatorul declara capacitate de switching de 1 Gbps si ca nu este necesara configurarea: switch-ul se conecteaza direct printr-un cablu Ethernet.
- 5 porturi RJ45 10/100 Mbps cu negociere automata si AUTO-MDI/MDIX
- Fara ventilator
- Alimentare printr-un adaptor extern, iesire 5.0 VDC / 0.6 A
- Capacitate de switching 1 Gbps (declarata de producator)
- Standarde IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Caracteristici Tehnice:
| Metoda de transfer | Store and forward |
|---|---|
| Porturi | 5 porturi RJ45 10/100 Mbps |
| Interfata | AUTO Negociere/AUTO-MDI/MDIX |
| Tensiune iesire adaptor | 5,0 V DC (iesire adaptor) |
| Curent iesire adaptor | 0,6 A (iesire adaptor) |
| Standarde si protocoale | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| Ventilator | Fara ventilator |
| Rate de transfer | 10/100 Mbps half duplex; 20/200 Mbps full duplex |
| Capacitate buffer | 768 Kb |
| Jumbo frame | 2 KB |
| Capacitate switching | 1 Gbps |
| LED-uri | Ethernet (1, 2, 3, 4, 5), alimentare |
| Certificari | CE, RoHS |
| Temperatura de functionare | 0-40 °C |
| Temperatura de depozitare | -40-70 °C |
| Umiditate de functionare | 10%-90% fara condensare |
Switch Mercusys desktop 5-Port 10/100 Mbps, MS105; 5x 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX; IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD; Rate de Transfer: 10/100 Mbps at Half Duplex/ 20/200 Mbps at Full Duplex; Capacitate Buffer: 768Kbit; Jumbo Frame: 2KB; Alimentare externă: 5V/0.64A.
